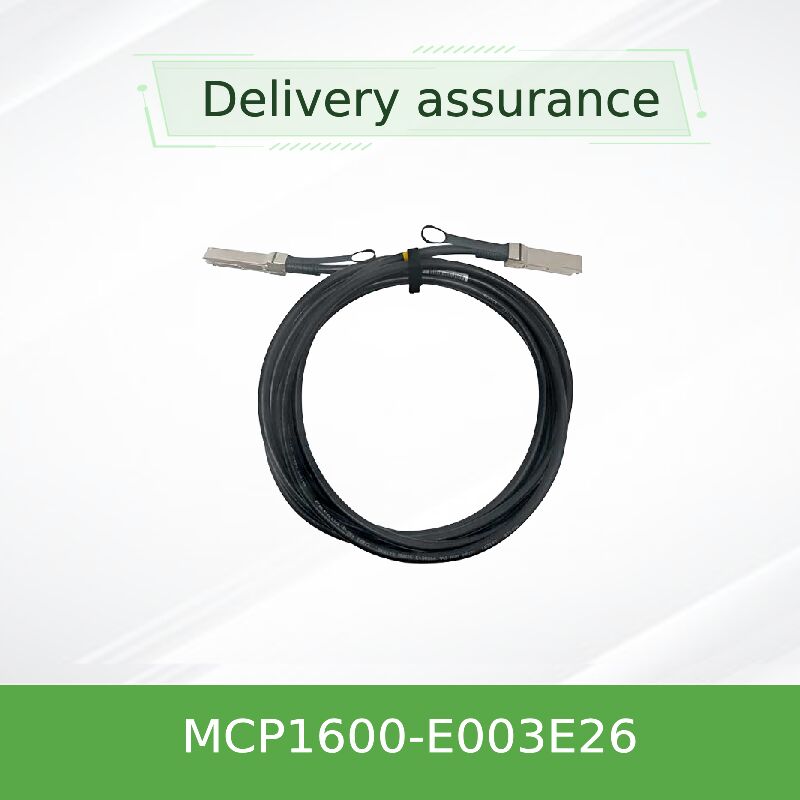

NVIDIA Mellanox MCP1600-E003E26 100Gb/s QSFP28 Passive DAC Cable 3m EDR InfiniBand
Подробная информация о продукте:
| Фирменное наименование: | Mellanox |
| Номер модели: | MCP1600-E003E26 |
| Документ: | PB_MCP1600-E0xxEyy_100Gbps_...AC.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт. |
|---|---|
| Цена: | Negotiate |
| Упаковывая детали: | Внешняя коробка |
| Время доставки: | На основе инвентаризации |
| Условия оплаты: | Т/Т |
| Поставка способности: | Поставка по проекту/партии |
|
Подробная информация |
|||
| Доступность: | Запас | Гарантия: | 1 год |
|---|---|---|---|
| Состояние: | Новое и оригинальное | Технология: | Infiniband |
| Тип: | CABLE MELLANOX AOC | Длина кабеля: | 3 метра |
| Имя: | Кабель Mellanox DAC MCP1600-E003E26 IB EDR 100 Гбит/с 4x 25G-NRZ QSFP28 LSZH 3 м 26AWG Сетевой кабел | Ключевое слово: | Cable Cable Mellanox |
Характер продукции
Cost-effective 3-meter passive copper cable delivering 100Gb/s throughput for EDR InfiniBand and 100GbE applications—featuring near-zero power consumption, ultra-low latency, and robust signal integrity for short-reach data center interconnects.
- 100Gb/s aggregate bandwidth over 4x 25Gb/s NRZ lanes per direction
- 3-meter length with 26AWG conductors, black LSZH jacket
- Supports InfiniBand EDR (100Gb/s) and 100 Gigabit Ethernet
- Near-zero power consumption (<0.1W) | Bit Error Rate better than 1E-15
- Hot-pluggable QSFP28 form factor, SFF-8665 compliant, RoHS compliant
- 100Gb/s Throughput: Four 25Gb/s NRZ channels per direction, aggregate 100Gb/s full duplex.
- Passive Copper Design: No active components—lowest cost, zero latency, and virtually zero power draw.
- 26AWG Conductors: Optimized for 3-meter reach with excellent signal integrity.
- Protocol Agnostic: Supports InfiniBand EDR and 100GbE with auto-negotiation.
- Rigorous Testing: 100% production tested for BER <1E-15 with Mellanox systems.
The MCP1600-E003E26 complies with SFF-8665 (QSFP28 electrical) and SFF-8636 (management interface). It uses 4x 25Gb/s NRZ modulation over twinax copper pairs. Supports InfiniBand EDR (IBTA 1.3) and 100GBASE-CR4 Ethernet. Integrated EEPROM provides product identification via I²C. RoHS compliant with LSZH jacket.
As a passive direct attach copper cable, the MCP1600-E003E26 relies on high-quality 26AWG twisted pairs and precision impedance matching (100Ω differential) to transmit 25Gb/s NRZ signals up to 3 meters without active amplification. The cable's construction minimizes skew and crosstalk, while the EEPROM provides host devices with configuration data (length, vendor, equalization hints). The result is a zero-latency, near-zero power link ideal for short-reach intra-rack connections.
- InfiniBand EDR Fabrics: Connect QM8700/QM8790 switches to ConnectX-5/6 adapters within racks.
- 100GbE Networks: Link Spectrum switches to servers or storage nodes up to 3m apart.
- Top-of-Rack to Server: Short-reach intra-rack connections with minimal power and cost.
- Storage Clusters: RDMA over Converged Ethernet (RoCE) and NVMe-oF deployments.
| Model | Length | AWG | Data Rate | Connector | Power | Cable Diameter |
|---|---|---|---|---|---|---|
| MCP1600-E003E26 | 3 m | 26 AWG | 100Gb/s (4x25G NRZ) | QSFP28 | < 0.1 W | 9.4 ± 0.4 mm |
| MCP1600-E002E30 | 2 m | 30 AWG | 100Gb/s | QSFP28 | < 0.1 W | 7.1 ± 0.35 mm |
| MCP1600-E005E26 | 5 m | 26 AWG | 100Gb/s | QSFP28 | < 0.1 W | 9.4 ± 0.4 mm |
Note: Operating temperature 0°C to 70°C, storage -40°C to 85°C. Minimum single bend radius: 47mm (5x diameter). Repetitive/assembly bend radius: 94mm (10x diameter).

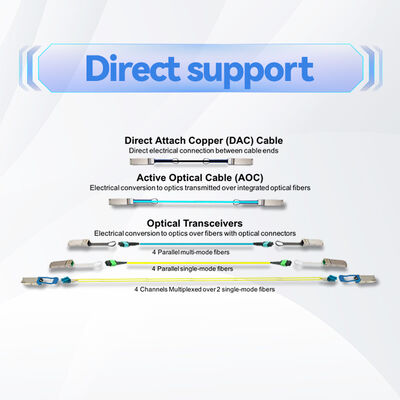

- vs. Active Optical Cables (AOC): Significantly lower cost, zero power consumption, and no cleaning required.
- vs. Active Copper (ACC): Lower cost and zero power—ideal for very short reaches ≤3m.
- Proven Reliability: BER better than 1E-15 with Mellanox systems ensures error-free transmission.
- Thicker 26AWG: Better signal integrity at 3m compared to 30AWG cables.
We offer 24/7 technical consultation, RMA services, and cabling infrastructure design support. Each MCP1600-E003E26 is backed by a 1-year limited hardware warranty and 100% factory testing. Our inventory ensures same-day dispatch for in-stock items. Pre-sales support for compatibility verification with ConnectX adapters and Quantum switches is available.
Q: Is this cable compatible with ConnectX-5 and ConnectX-6 adapters?
A: Yes, it is fully compatible with ConnectX-5 (EDR) and ConnectX-6 (EDR/HDR100) adapters.
Q: Can I use this DAC for 100GbE applications?
A: Yes, it supports 100GBASE-CR4 Ethernet as well as InfiniBand EDR.
Q: What is the minimum bend radius for installation?
A: For single bend (far from connector), minimum is 47mm (5x diameter). For repeated or assembly bend near connector, maintain 94mm (10x diameter).
Q: Does it require any configuration?
A: No, it is plug-and-play. The EEPROM provides identification, and the host automatically sets up the link.
Q: What is the power consumption?
A: Near-zero (<0.1W) as there are no active components.
- ESD Sensitivity: Use grounded wrist straps when inserting into QSFP cages. Connectors are shipped with protective caps—remove only immediately before installation.
- Bend Radius: Do not exceed minimum bend radius (47mm single, 94mm repetitive). Avoid sharp bends near connectors.
- Operating Temperature: Ensure ambient temperature within 0°C–70°C.
- Storage: Store in clean, dry environment between -40°C and 85°C.
- Compatibility: Verify connector type (QSFP28) matches your equipment.
