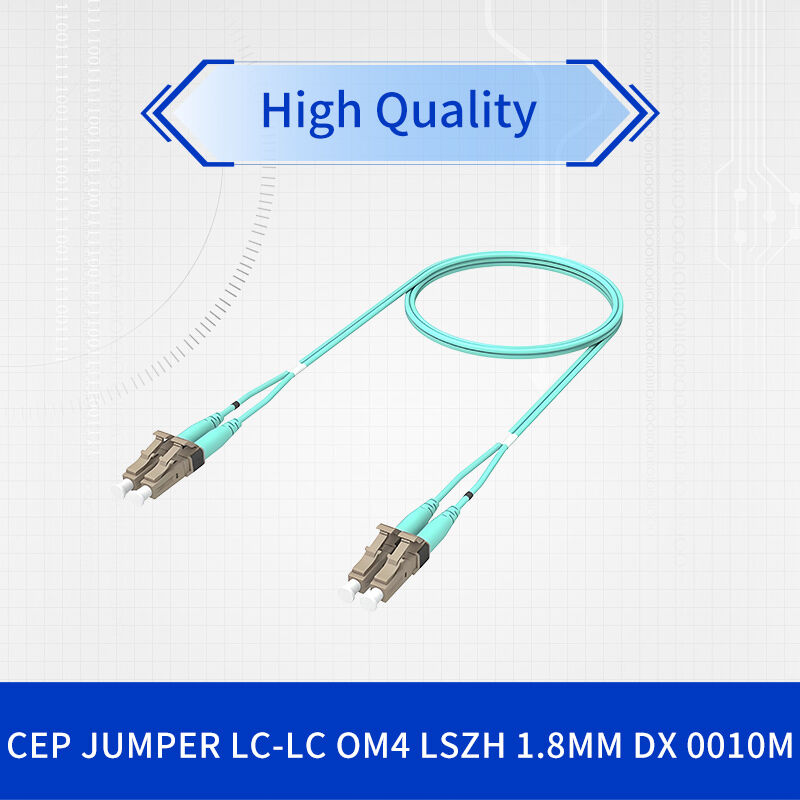

CommScope OM4 LC Duplex Fiber Optic Patch Cord - Precision Engineered for Hyperscale Data Centers
Подробная информация о продукте:
| Фирменное наименование: | Commscope |
| Номер модели: | CEP-LCLC-L40B010M |
| Документ: | CEP-LCLC-L40B.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт. |
|---|---|
| Цена: | Negotiate |
| Упаковывая детали: | коробка |
| Время доставки: | На основе инвентаризации |
| Условия оплаты: | Т/Т |
| Поставка способности: | Поставка по проекту/партии |
|
Подробная информация |
|||
| Интерфейс, разъем А: | LC/UPC | Характеристики интерфейса, разъем A: | Двойной х |
|---|---|---|---|
| Разъем, Разъем Б: | LC/UPC | Характеристики интерфейса, разъем B: | Двойной х |
| Цвет оболочки: | Аква Грин | Всего ядер, количество: | 2 |
| Выделить: | CommScope OM4 fiber optic patch cord,LC duplex fiber optic cable,hyperscale data center fiber cable |
||
Характер продукции
This isn't just another fiber patch cord—it's a precision-engineered connectivity solution built for today's most demanding hyperscale data centers and enterprise networks.
Sub-micron alignment accuracy for consistent low insertion loss across all connections
Tool-less polarity reversal saves 73% installation time compared to traditional methods
| Fiber Geometry | 50/125μm OM4 Multimode with Enhanced Bandwidth |
|---|---|
| Connector Precision | LC/UPC Duplex with <0.2dB Typical Insertion Loss |
| Cable Architecture | 1.8mm LSZH with Reinforced Tensile Strength |
| Color Coding | Aqua Green for Instant OM4 Identification |
| Optical Performance | 3.0 dB/km @850nm | 1.0 dB/km @1300nm |
|---|---|
| Environmental Range | -10°C to +60°C Operational Stability |
| Bend Innovation | 7.5mm Radius with <0.20dB Impact |
| Durability Cycle | 500+ Mating Cycles Minimum |
Unlike standard patch cords, our OM4 LC-LC cables feature epoxy-less connector technology that eliminates thermal cycling issues and provides superior long-term reliability in fluctuating data center environments.
Advanced fiber geometry maintains signal integrity even when subjected to repeated bending cycles—perfect for high-density patching environments where cable movement is frequent.
- Hyperscale Data Centers: Massive scalability with consistent performance across thousands of connections
- Industrial Automation: Withstands vibration, temperature swings, and electromagnetic interference
- 5G Network Infrastructure: Front-haul and back-haul connectivity with minimal latency and jitter
| Application Scenario | Recommended Length | Model Number | Installation Benefit | ROI Impact |
|---|---|---|---|---|
| Top-of-Rack Switching | 1-2 meters | CEP1CLC140B002M | ✓ Reduced Clutter | ⭐ High |
| Cross-Rack Connectivity | 3-5 meters | CEP1CLC140B005M | ✓ Flexible Routing | ⭐⭐ High |
| Data Center Aisle | 10-15 meters | CEP1CLC140B015M | ✓ Long Reach | ⭐⭐⭐ Very High |
| Building Backbone | 20-30 meters | CEP1CLC140B030M | ✓ Infrastructure Link | ⭐⭐ Critical |
Quality Management System Certified
Optical Fiber Component Standard
Fibre Optic Interconnect Performance
When deploying in high-density panels, use the "loop and secure" method rather than tight bends—this preserves signal integrity and extends cable lifespan.
Order cables 10-15% longer than measured distance to accommodate future reconfiguration without requiring complete replacement.
